The MSS-TORNAD-300 stands out with its exceptional cutting precision, powered by a 300W high-stability laser source that delivers a peak power of up to 360W and a continuous working life exceeding 12,000 hours, ensuring long-term reliability and consistent performance throughout intensive production cycles. Equipped with an innovative diversion and exhaust heat dissipation system, the machine effectively prevents overheating failures, further enhancing its operational stability and service life. With a positioning accuracy of ±0.03mm/m and a repeat positioning accuracy of ±0.02mm/m, it achieves burr-free, smooth incisions with minimal material loss, eliminating the need for secondary processing and reducing scrap rates significantly.
Efficiency is at the heart of the MSS-TORNAD-300’s design. Its high-speed laser cutting system, paired with a servo-driven dual-rack drive mechanism, enables a maximum cutting speed of up to 80m/min, while the intelligent CNC control system automates cutting path generation and optimizes cutting sequences, reducing processing time and labor intensity. The machine supports 0-tail material cutting and automatic feeding, further streamlining the production workflow and maximizing throughput—ideal for high-volume manufacturing scenarios where efficiency directly impacts profitability.
Built for durability, the MSS-TORNAD-300 features a reinforced welded bed that undergoes high-temperature annealing (550°C × 4h) to eliminate internal stress and prevent deformation, ensuring structural rigidity and stable performance even in demanding industrial environments. High-damping sliding guides and a high-power synchronous built-in spindle motor enhance the machine’s stability, while the fully enclosed cabin with triple safety interlocks ensures operator safety during operation.
MSS-TORNAD-300 Laser Tube Cutting Machine
MSS-TORNAD-300 Laser Tube Cutting Machine
Introducing the MSS-TORNAD-300 Laser Tube Cutting Machine, a cutting-edge solution engineered to redefine precision, efficiency, and versatility in metal tube processing. Designed for modern manufacturing environments, this high-performance equipment integrates advanced laser technology, robust mechanical structure, and intelligent control systems to deliver consistent, high-quality cuts across a wide range of tube materials and specifications, making it an indispensable asset for industries seeking to elevate productivity and reduce operational costs.
Key Features
The MSS-TORNAD-300 offers exceptional versatility, capable of cutting a wide range of metal and non-metal materials, including carbon steel, stainless steel, acrylic, plywood, MDF, and HDF. It excels in processing various tube shapes, such as round tubes, square tubes, rectangular tubes, oval tubes, and custom profiles, with a maximum tube diameter range of φ20-350mm and a maximum processing length of up to 6000mm, adapting to diverse manufacturing needs. Specifically, it can effortlessly cut up to 4mm carbon steel, 3mm stainless steel, 20mm acrylic, and 12mm MDF/plywood, making it suitable for a broad spectrum of industries.
From automotive manufacturing (chassis, exhaust pipes, structural components) and aerospace (precision structural parts) to furniture production (metal frames, decorative components), fitness equipment (metal frames), construction machinery (hydraulic pipes), and architectural decoration (curtain wall structures, stair railings), the MSS-TORNAD-300 delivers reliable performance across multiple sectors, meeting the strict precision and efficiency requirements of modern manufacturing.
Technical Specifications
Designed with user convenience in mind, the MSS-TORNAD-300 features an 18-inch color LED display and an intuitive CNC control system that supports multi-language operation, making it easy to operate even for less experienced operators. The system stores proven cutting recipes, allowing for quick setup and consistent results across production runs, while the 0-contact automatic height tracking laser head adjusts dynamically to material deviations, ensuring stable cutting performance and reducing errors. Additionally, the machine supports optional bevel cutting (up to ±45°), enabling weld-ready edges and expanding its application scope for complex projects.
Case Study
We believe the projects that we have executed speak for themselves. Our company has supplied multiple sets of high‑performance laser tube cutting machines for global industrial projects. We delivered 7 units of MSS‑TORNAD‑800‑P heavy‑duty laser tube cutting machines for the Heavy Machinery Pipe Processing Project in Saudi Arabia. For Xuzhou Construction Machinery Intelligent Manufacturing Base Phase III, we have provided 6 units of MSS‑TORNAD‑800‑P laser tube cutting machines, which have been operating stably to date.

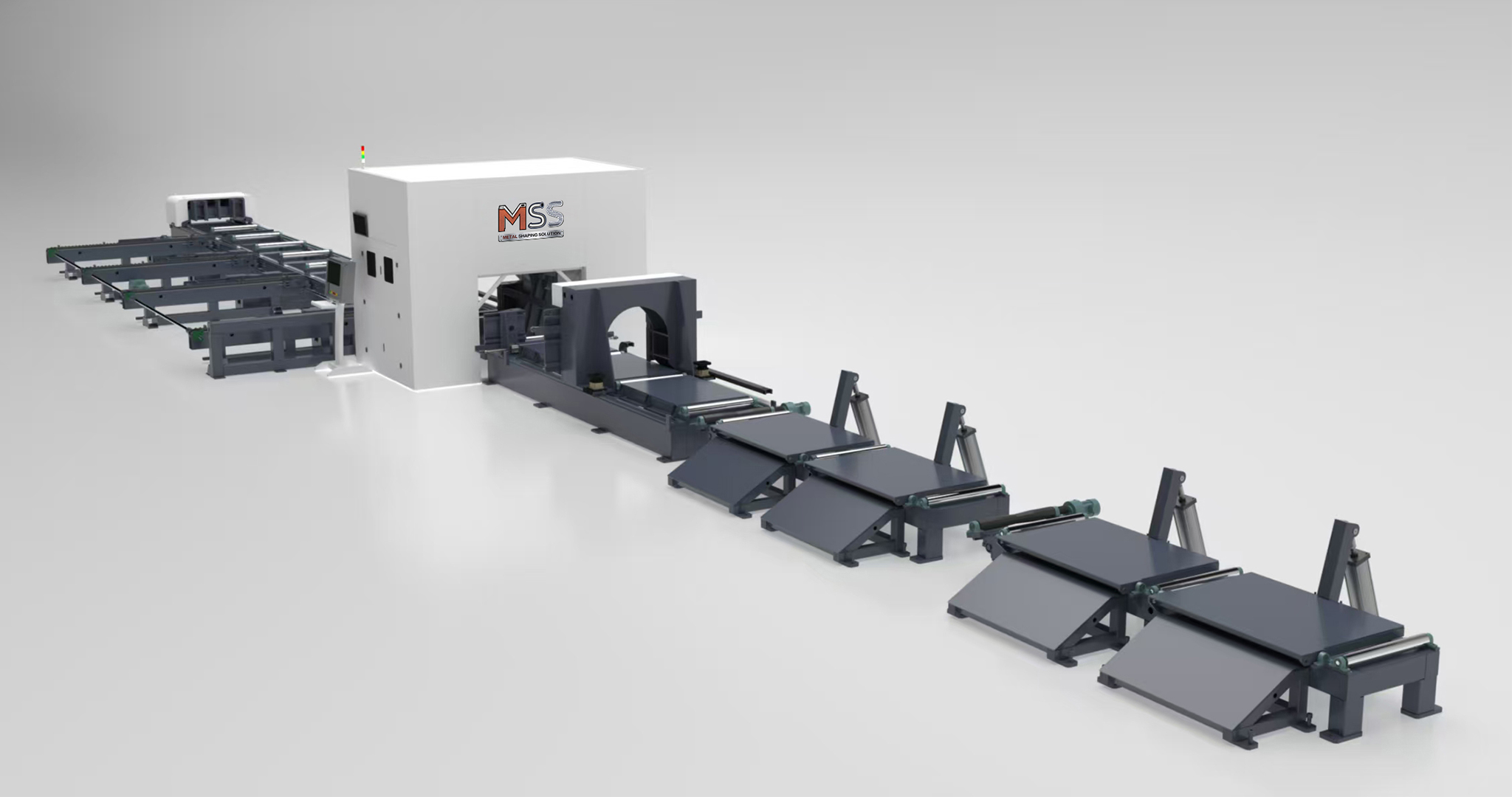

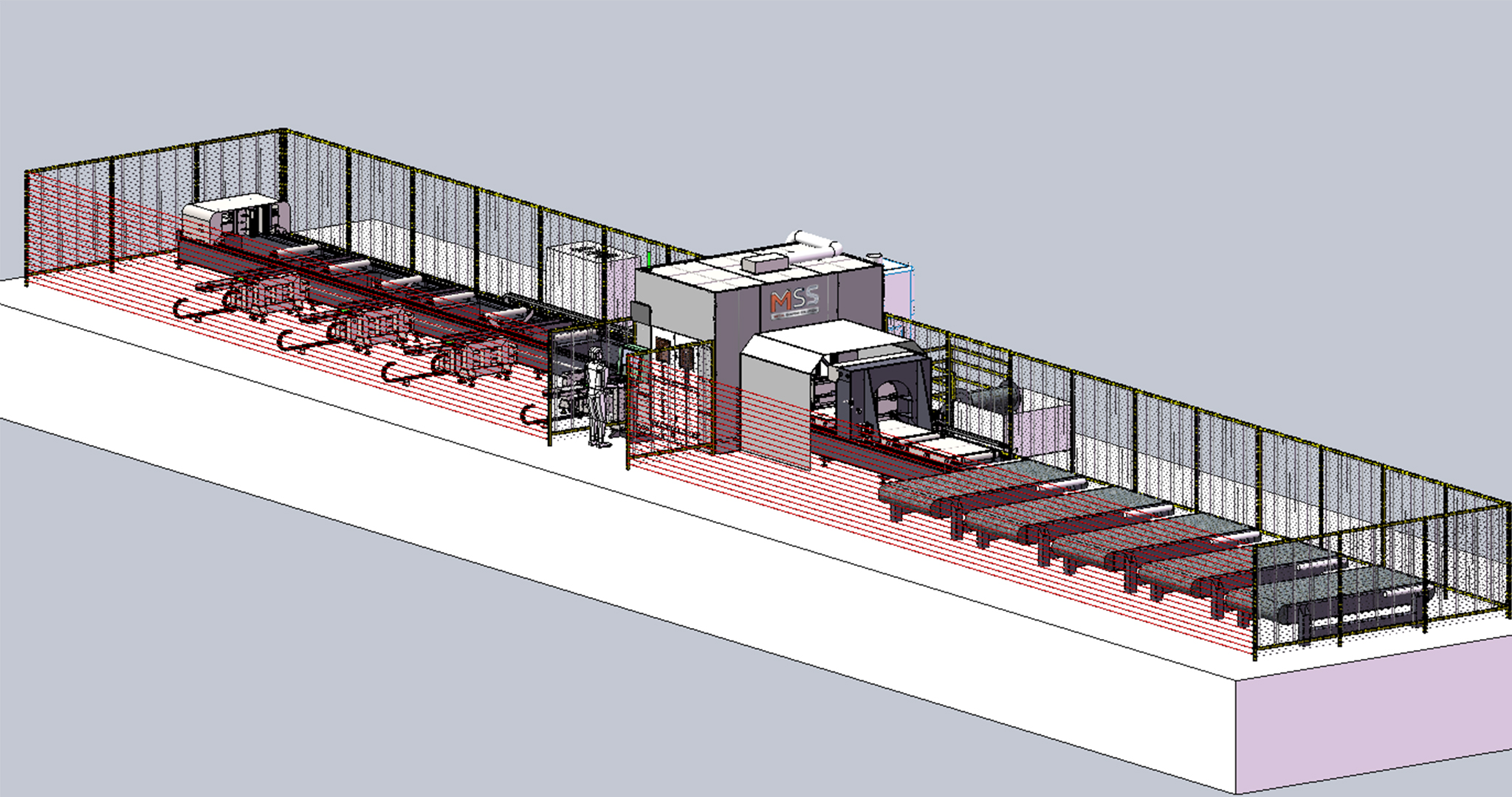

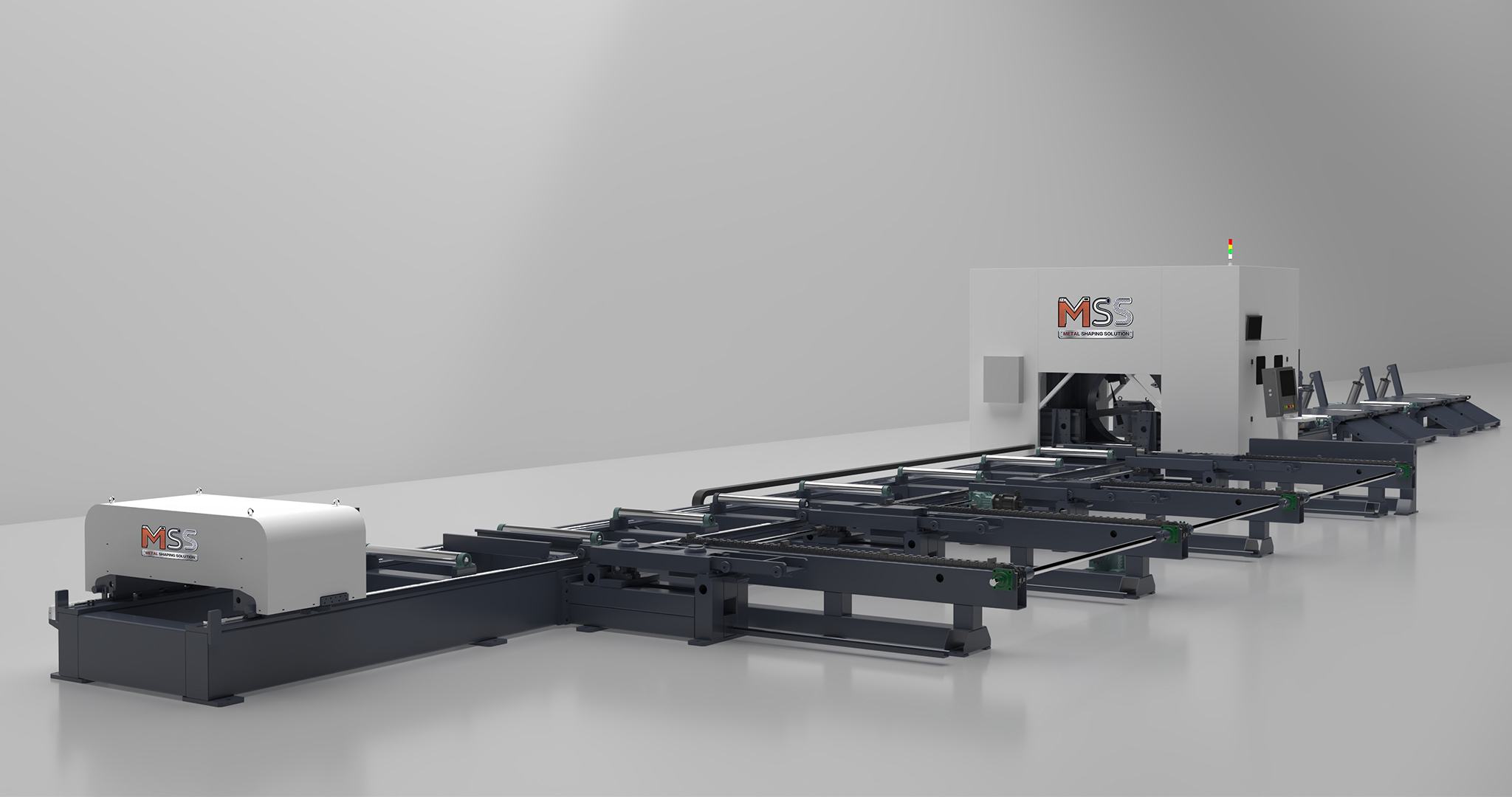

Construction Machinery Intelligent Manufacturing Base Phase III
Turkish Furniture Manufacturing Expansion Project
European Scaffolding Production Line Upgrade Project
Heavy Machinery Pipe Processing Project in Saudi Arabia
Full‑process Solution for Cutting Machine
We deliver a one‑stop, full‑process laser tube cutting solution covering consulting, customized scheme design, equipment supply, installation & commissioning, technical training, and after‑sales service. From raw tube feeding, high‑precision cutting, bevel processing to finished‑piece output, our MSS‑TORNAD‑300 and MSS‑TORNAD‑800‑P laser cutting machines seamlessly integrate every production link. Tailored for small‑batch flexible processing and large‑scale heavy‑duty manufacturing respectively, our complete solution optimizes workflow, reduces manual intervention, lowers production costs, and ensures stable, high‑quality output throughout the whole production cycle for global clients in construction machinery, automotive, metal furniture, energy equipment and architectural decoration industries.
Why Choose Metal Shaping Solutions's Cutting Machine
- Dual‑Model Product Matrix for Full‑Scenario Needs
We provide MSS‑TORNAD‑300 cost‑effective model for medium‑precision & medium‑volume tube cutting, and high‑power MSS‑TORNAD‑800‑P for heavy‑duty, thick‑wall & large‑diameter tube processing, fully covering small‑batch flexible production and large‑scale industrial manufacturing.
- Ultra‑high Precision & Efficient Performance
Positioning accuracy up to ±0.02mm/m, burr‑free & smooth cutting edges without secondary polishing. Max cutting speed reaches 100m/min, greatly boosting throughput and reducing material waste.
- Robust & Stable Industrial‑grade Structure
Reinforced annealed machine bed, imported laser source with long service life, intelligent water‑cooling heat dissipation system, supporting 24‑hour continuous heavy‑load operation with low failure rate.
- Intelligent & User‑Friendly Operation
Multi‑language CNC control system, automatic feeding & zero‑tail cutting, one‑click parameter preset for various tubes, lowering operation difficulty and labor cost.
- Complete Full‑process After‑sales Service
One‑stop support including pre‑sale scheme design, on‑site installation & commissioning, technical training, spare parts supply and global after‑sales response, ensuring long‑term stable production for customers.
